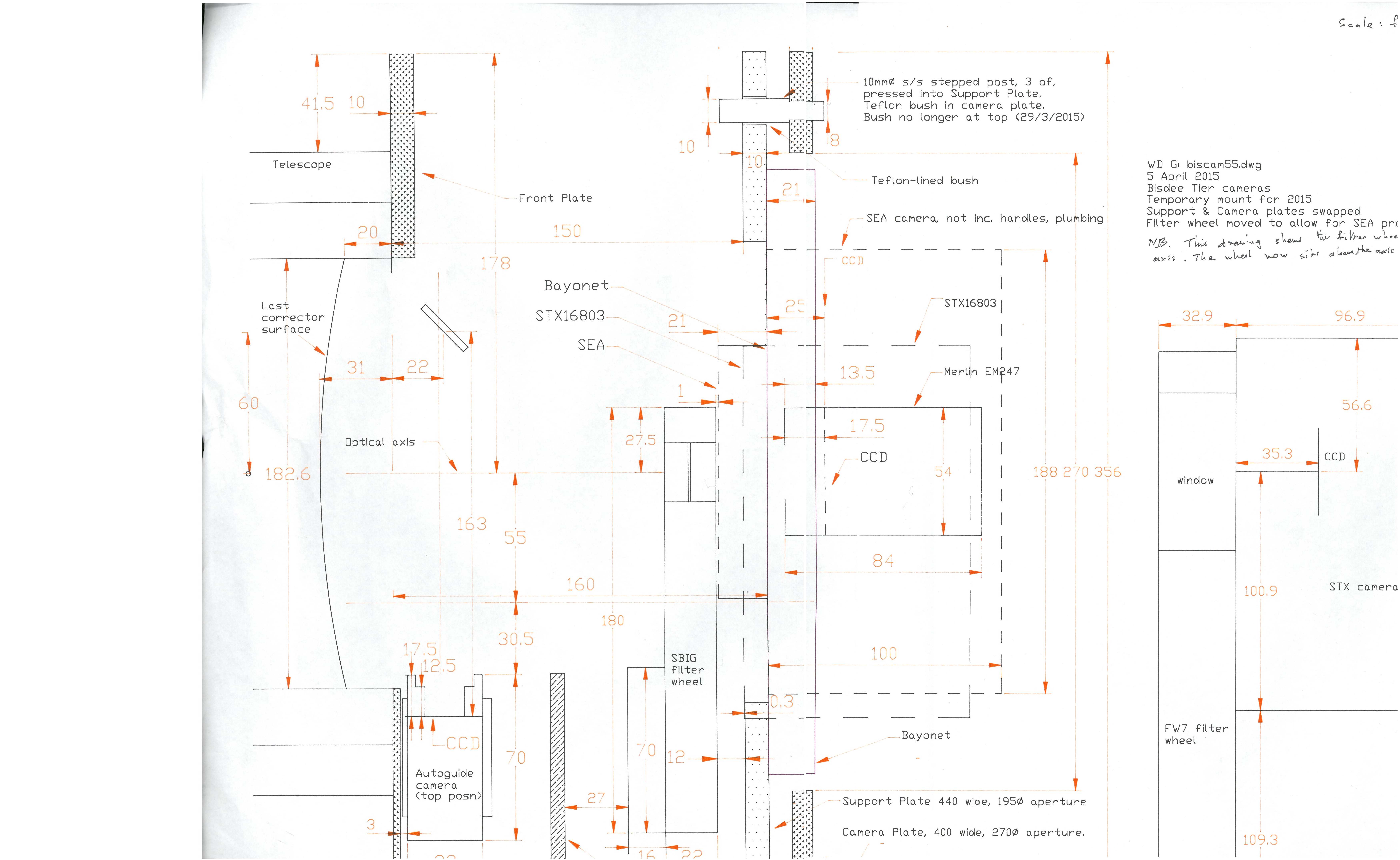

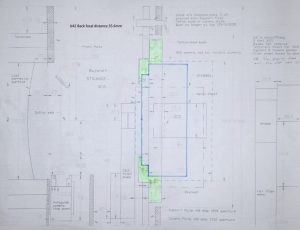

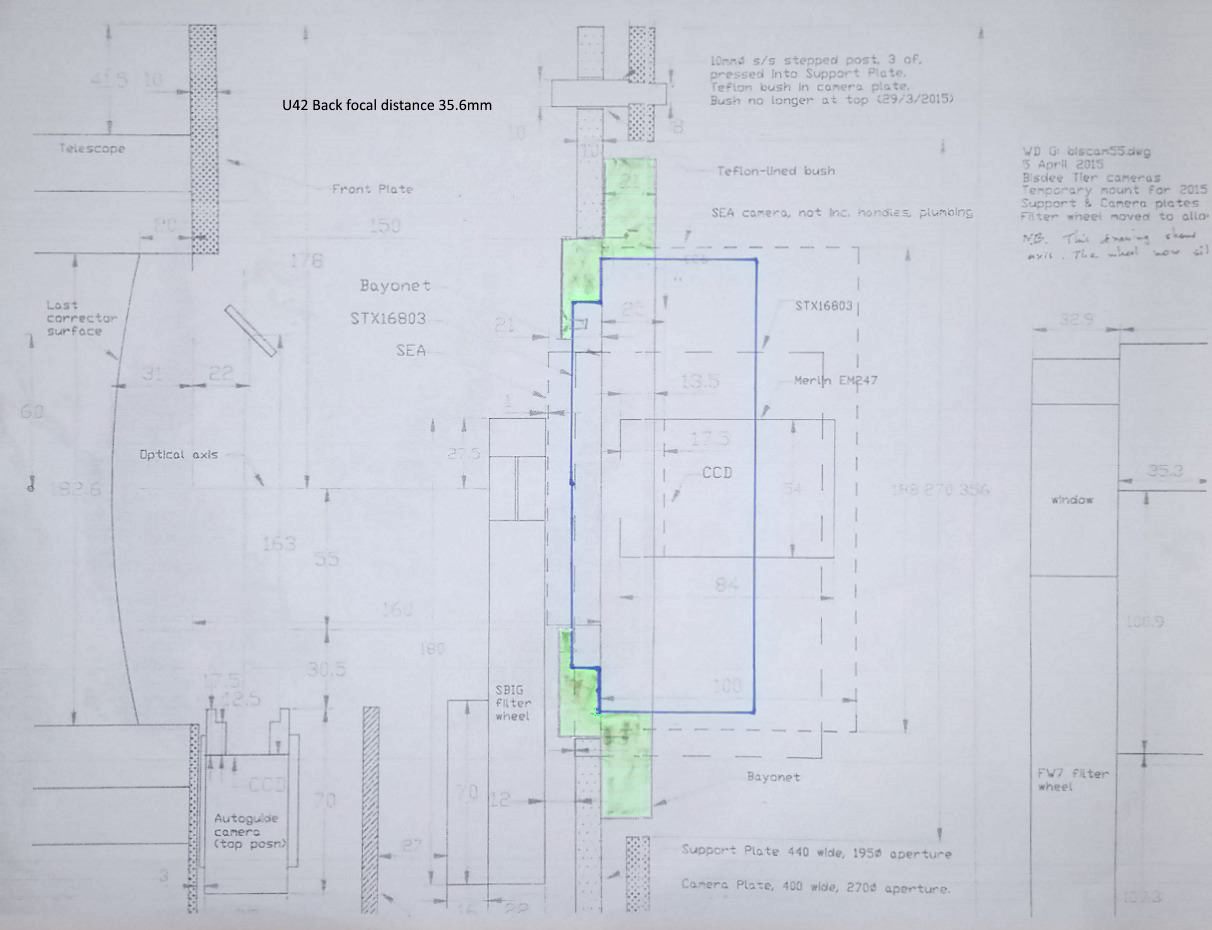

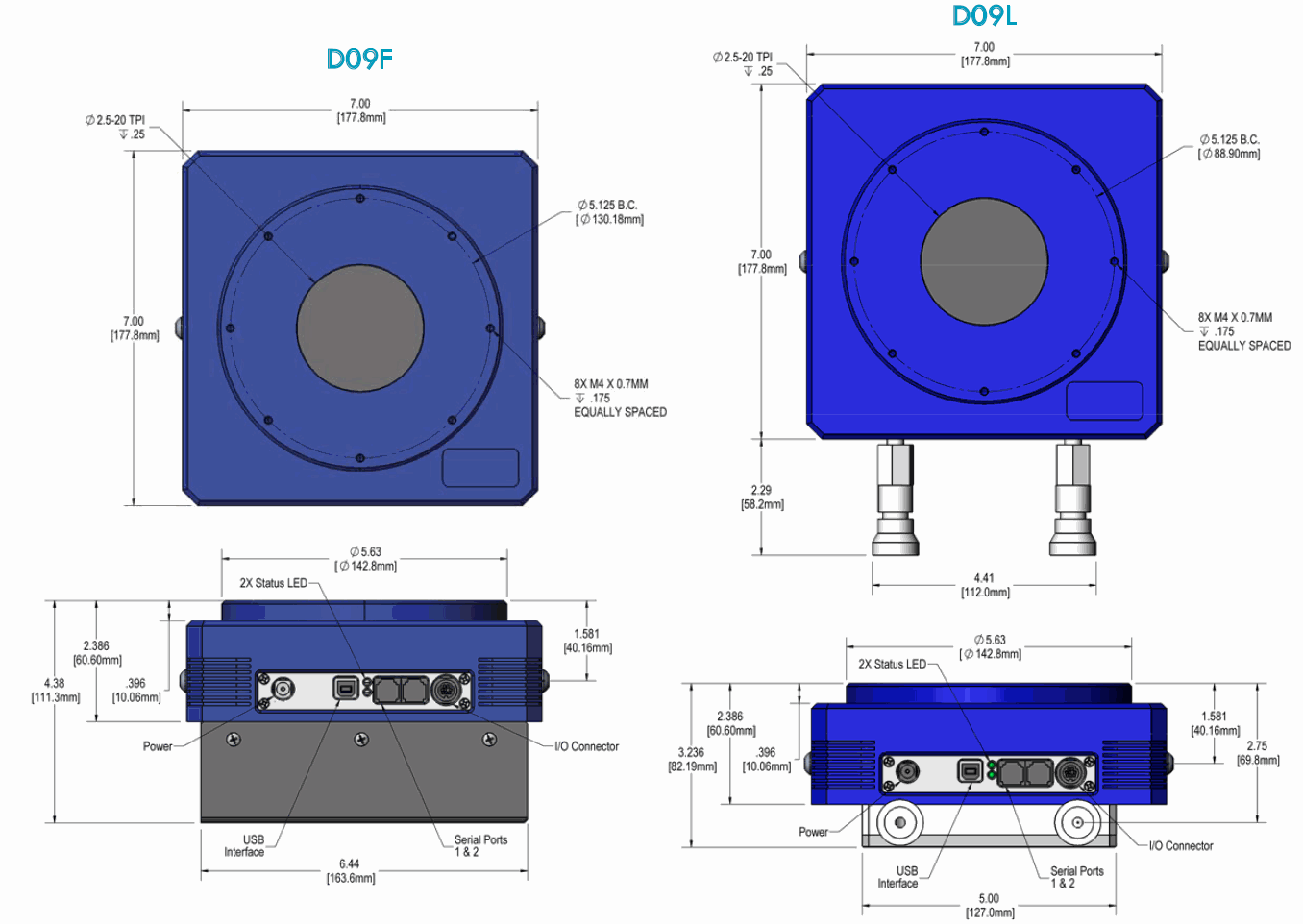

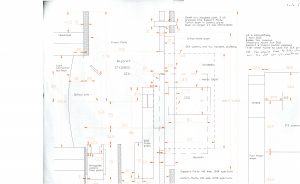

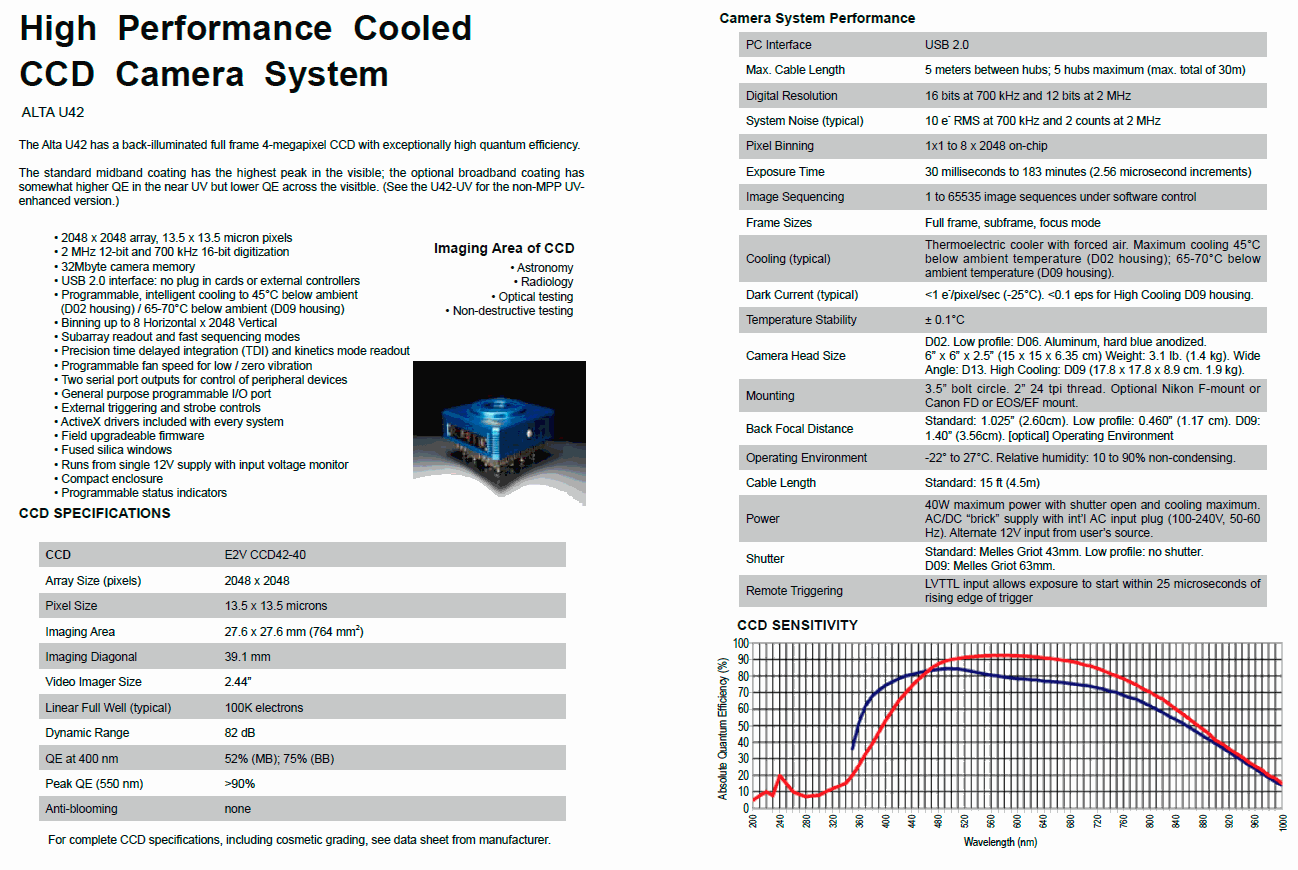

The “Instrument layout” diagram shows the current instrumentation layout for the East Nasmyth focus (Autoguider, x-y stage, filterwheel and the Site-512 dewer).  The other information shows the how an Apogee U42/D09f camera and bayonet plate (green) could be attached here.

Eastnasmyth

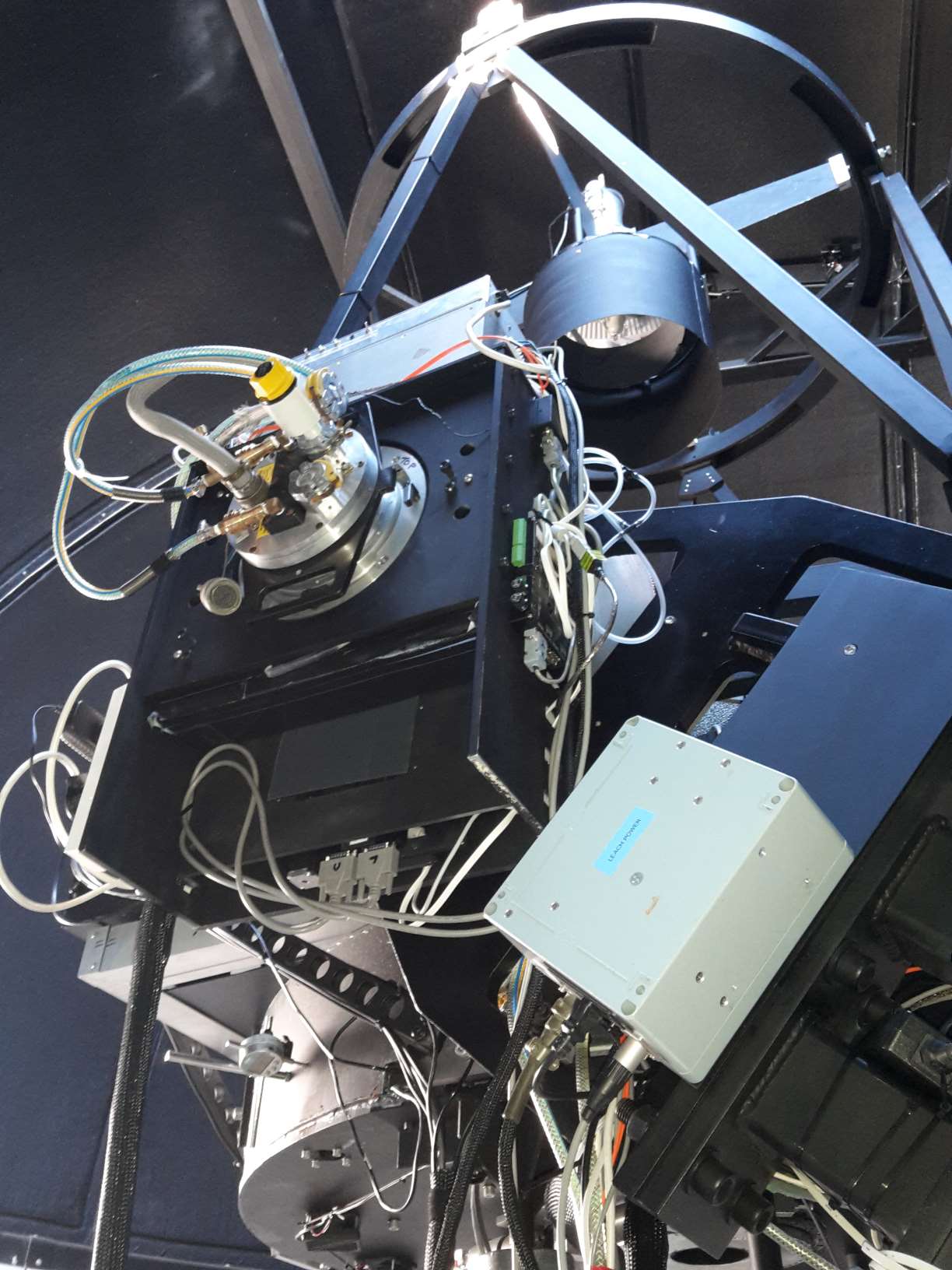

East Nasmyth focus
